TW114 Diamond Grinding & Polishing Plate

TW114 Diamond Grinding & Polishing Plate for Granite Slab

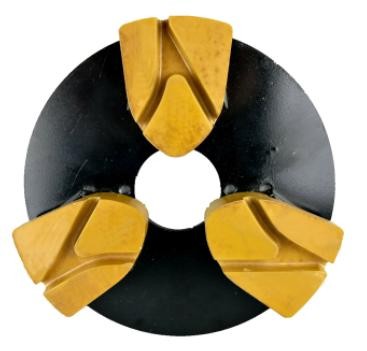

TW114 Metal Bridge Type Grinding Disc

TW114 Metal Bridge Type Grinding Disc is specially designed for granite slab grinding and calibration applications. The bridge type structure allows convenient replacement of grinding segments while maintaining excellent grinding efficiency and stable working performance.

Features

• Bridge type structure for easy segment replacement
• High grinding efficiency and fast material removal
• Excellent wear resistance and long service life
• Stable grinding performance on automatic polishing lines
• Suitable for granite slab calibration and rough grinding

Specifications

• Diameter: 8" (φ200mm) / 10" (φ220mm)
• Segment Size: 40×7×10mm / 30×7×10mm
• Grit: #50 #100 #200 #400
• Type: H / M / S / SS
• Working Height: 10mm
• Installation: M8×4-φ75 + M8×2-φ125
• Application: Granite Slab Grinding & Calibration

Applications

Widely used for granite slab calibration, rough grinding and surface leveling on automatic stone polishing production lines and stone processing machines.
