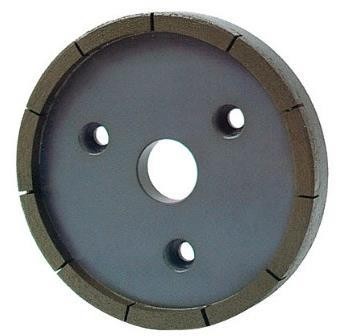

TW8211 Segmented Squaring Wheel

TW8211 Segmented Squaring Wheel

TW8211 Segmented Squaring Wheel is designed for edge squaring, calibration and rough grinding of artificial quartz stone slabs. The segmented diamond rim provides fast material removal, excellent cooling performance and stable cutting efficiency. It is widely used on automatic quartz stone edge processing lines to achieve accurate edge dimensions and prepare slabs for subsequent polishing operations.

Features

• Professional segmented squaring wheel for engineered quartz stone.
• Available outer diameters: 150mm, 200mm, 250mm and 300mm.
• 12mm steel body ensures excellent rigidity and stability.
• Segment widths: 8mm, 9mm, 10mm and 12mm.
• Segment heights: 8mm, 10mm, 12mm and 14mm.
• Multiple mounting hole patterns fit different edge grinding machines.
• Fast cutting speed with efficient chip removal.
• Custom specifications available upon request.

Specifications

• Model: TW8211
• Body Thickness: 12mm
• Outer Diameter: 150 / 200 / 250 / 300mm
• Hole Diameter: 30 / 32 / 50 / 80 / 140mm
• Mounting Holes: 3 / 4 / 6 / 12
• Mounting Hole Distance: 60 / 80 / 105 / 110 / 165mm
• Segment Width: 8 / 9 / 10 / 12mm
• Segment Height: 8 / 10 / 12 / 14mm

Advantages

• High edge squaring accuracy.
• Excellent stock removal efficiency.
• Long service life.
• Stable cutting performance.
• Efficient heat dissipation due to segmented design.
• Suitable for continuous automatic production.

Applications

Suitable for edge squaring, calibration and rough grinding of artificial quartz stone slabs before polishing. Commonly used on automatic quartz stone edge processing machines to produce straight, accurate and smooth slab edges. Segmented squaring wheels are widely used for engineered stone processing where high material removal and effective cooling are required. :contentReference[oaicite:0]{index=0}
