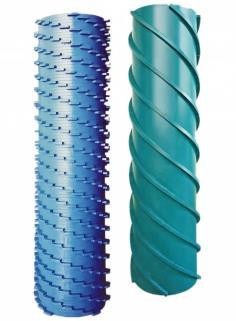

TW9111 Diamond Roller for Ceramic

TW9111 Diamond Roller for Ceramic

TW9111 Diamond Roller is specially designed for calibrating ceramic tiles and slate slabs on automatic calibration production lines. Manufactured with premium industrial diamond segments and high-strength steel body, it provides excellent stock removal, dimensional accuracy and long service life. The precision spiral segment arrangement ensures stable grinding performance, uniform material removal and high processing efficiency. It is widely used in ceramic tile manufacturing plants for thickness calibration before polishing and finishing processes.

Features

• Professional diamond calibration roller for ceramic and slate.
• 240mm roller diameter.
• Available lengths: 295mm, 395mm, 495mm, 595mm, 795mm, 995mm and 1195mm.
• 9mm segment width with 13mm segment height.
• 5 or 7 spiral configurations available.
• Available grits: #35, #40, #50, #60, #70 and #200.
• High grinding efficiency with excellent dimensional consistency.
• Long service life and stable cutting performance.
• Custom specifications available upon request.

Specifications

• Model: TW9111
• Diameter: 240mm
• Length: 295 / 395 / 495 / 595 / 795 / 995 / 1195mm
• Segment Width: 9mm
• Segment Height: 13mm
• Spirals: 5 / 7
• Grit: #35 #40 #50 #60 #70 #200

Advantages

• Fast material removal.
• Excellent slab thickness consistency.
• Long operating life.
• Stable grinding performance.
• High production efficiency.
• Suitable for continuous automatic production lines.

Applications

Suitable for calibrating ceramic tiles, porcelain slabs, sintered stone and slate before polishing. Widely used on automatic ceramic calibration machines to remove surface irregularities, achieve uniform slab thickness and improve polishing quality.
