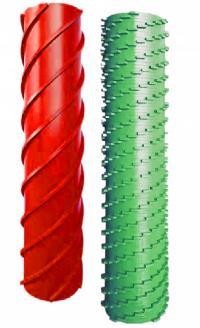

TW8111 Diamond Roller

TW8111 Diamond Roller for Artificial Quartz Stone

TW8111 Diamond Roller is specially designed for calibrating artificial quartz stone slabs before the grinding and polishing process. Manufactured with premium industrial diamond segments, the spiral roller provides aggressive material removal, accurate thickness calibration and excellent wear resistance. It is widely used on automatic quartz stone production lines to ensure consistent slab thickness and improve the efficiency of subsequent polishing operations. Diamond calibrating rollers are essential tools for thickness equalization and surface preparation in engineered stone processing. They provide fast stock removal, low operating noise and long service life. :contentReference[oaicite:0]{index=0}

Features

• Professional diamond roller for artificial quartz stone calibration
• 240mm roller diameter with multiple length options
• Available lengths: 295mm, 395mm, 495mm, 595mm, 795mm, 995mm and 1195mm
• 9mm segment width and 13mm segment height
• 5 or 7 spiral configurations available
• Available grits: #35, #40, #50, #60, #70 and #200
• Excellent cutting performance and wear resistance
• Custom specifications available according to machine requirements

Specifications

• Model: TW8111
• Diameter: 240mm
• Length: 295 / 395 / 495 / 595 / 795 / 995 / 1195mm
• Segment Width: 9mm
• Segment Height: 13mm
• Spiral: 5 / 7
• Grit: #35 #40 #50 #60 #70 #200

Advantages

• Fast and accurate slab thickness calibration
• High material removal efficiency
• Excellent chip removal performance
• Low operating noise
• Long service life
• Suitable for continuous automatic production lines

Applications

Suitable for calibrating artificial quartz stone slabs before polishing. Compatible with automatic quartz stone calibration and polishing lines from various machine manufacturers. It is widely used to equalize slab thickness, remove molding defects and prepare the surface for the following grinding and polishing stages. :contentReference
