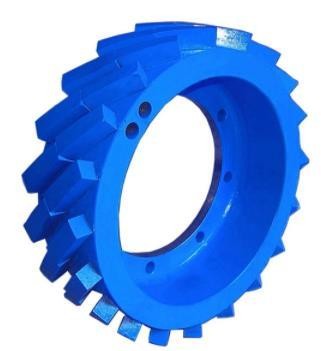

TW8123 Calibrating Wheel

TW8123 Diamond Calibrating Wheel

TW8123 Diamond Calibrating Wheel is developed for precision thickness calibration and rough grinding of artificial quartz stone slabs. Featuring a durable steel body with premium diamond segments, the wheel ensures stable material removal, excellent dimensional accuracy and long service life. The 2-spiral design provides smooth cutting performance while reducing vibration during continuous production, making it suitable for modern automatic quartz stone processing lines.

Features

• Professional calibrating wheel for artificial quartz stone
• Wheel diameter: Φ202mm
• Wheel thickness: 60mm
• 2-spiral segment configuration for stable cutting
• Segment size: Φ37.5×35×12×12mm
• Available grits: #46, #60, #70 and #80
• M (Standard) and S (Sharp) segment types available
• Custom specifications available upon request

Specifications

• Model: TW8123
• Diameter: Φ202mm
• Thickness: 60mm
• Spirals: 2
• Segment Size: Φ37.5×35×12×12mm
• Grit: #46 #60 #70 #80
• Type: M (Standard) / S (Sharp)

Advantages

• High calibration accuracy
• Fast stock removal
• Stable cutting with low vibration
• Excellent wear resistance
• Long service life
• Suitable for continuous automatic production

Applications

Suitable for thickness calibration and rough grinding of artificial quartz stone slabs before polishing. It is widely used on engineered stone production lines to ensure uniform slab thickness, improve machining accuracy and prepare surfaces for subsequent grinding and polishing processes.
